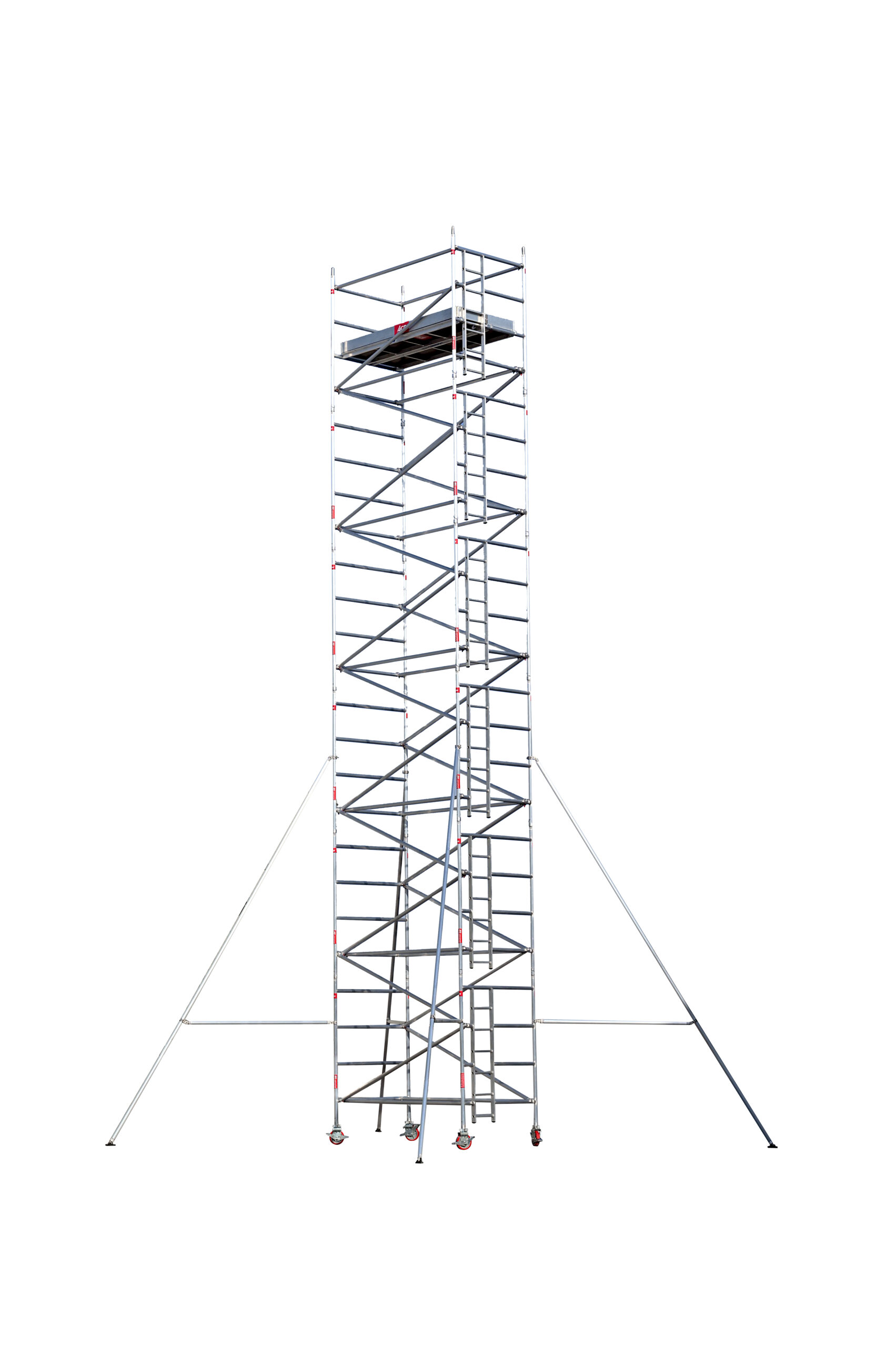

The Double width Mobile tower is ACE,s scaffold system which has various applications for both interior and exterior use.
The maximum working height for interior and exterior work is 17 meter
Built in integral ladder frame, braces welded not crimped. Heavy duty claws on braces with fast release clip-trigger mechanism.
Safe working load is 270Kg per platform and the total weight including the tower is 850Kg.
The frames are connected with rigid spigot straight for easy assembling and dismantling along with locking pins to prevent accidental removal of frames .
Caster wheels 200mm has a foot operated dual brake system and can easily be locked and released.300mm adjustable leg with self cleaning thread.
The towers are equipped with standard & trapdoor platform along with aluminum or wooden toe board.
Frame Width available 1.2, 1.4, 1.5, 1.7 & 2.0 meter
Frame Length available 1.5 , 2.0 & 2.5 meter.
Our access equipment products are manufactured to BS EN.1004 Standard.
