Components
- Platform is made of aluminum extruded with anti slip plywood board to avoid any slip for working safely on the tower

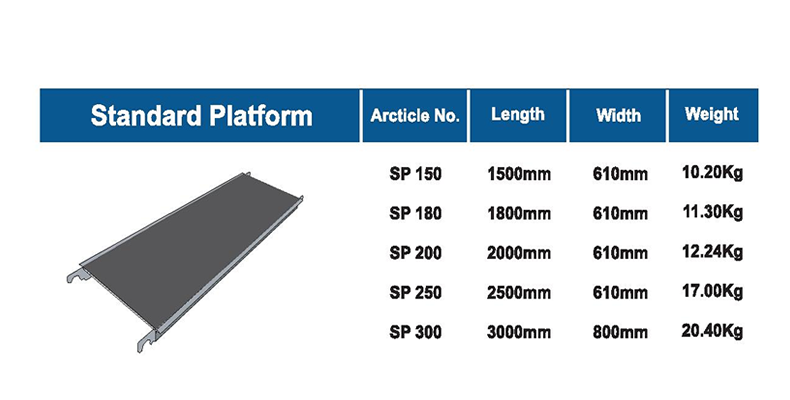

- Wooden Platforms are available in Two Types-Standard and Trapdoor
- Platform is light weight with strong construction and can be carried by single person.
- Platform is secured with wind anchor.

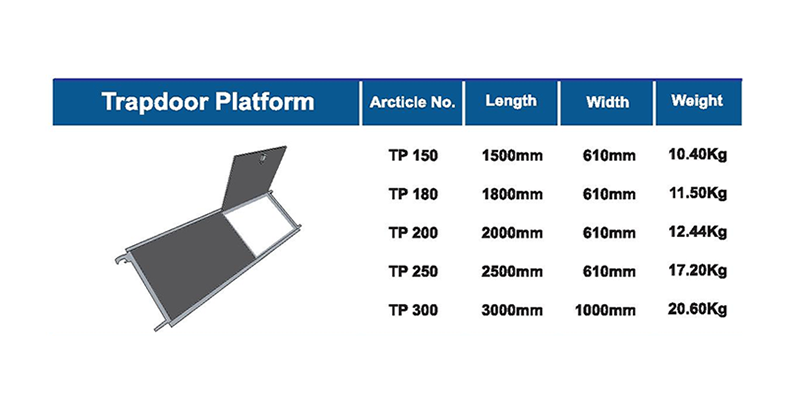

- Trapdoor platform hinges allow user to climb through to reach desired working height.

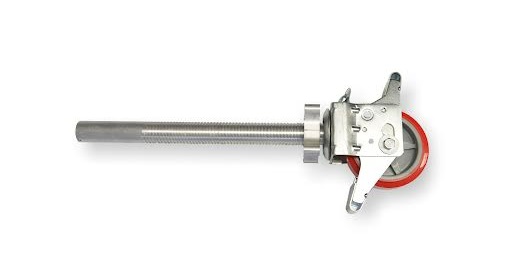

- Caster wheels 200mm has a foot operated dual brake system and can easliy be locked and released.
- The Aluminum Spindle adjustment allow the tower to be position in perfect vertical manner and allow height to be adjusted if the tower to be errected on uneven ground.

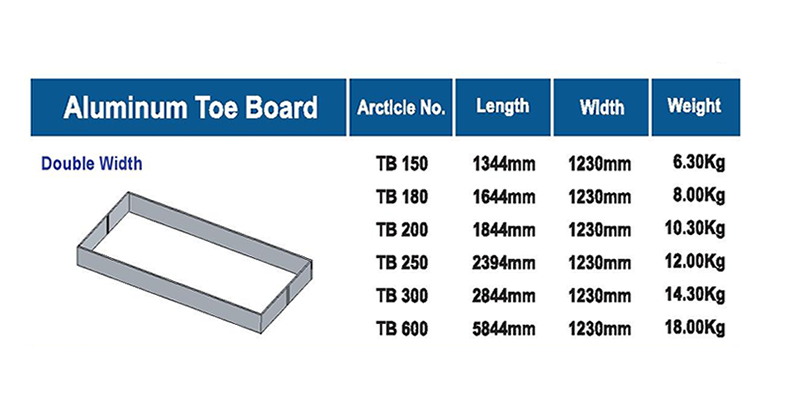

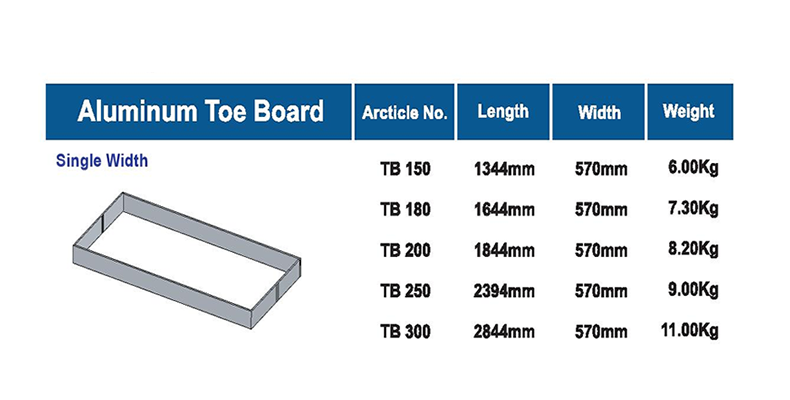

- Aluminium toe board is made of aluminium frame which prevent any tools or materials fall off from the platform.

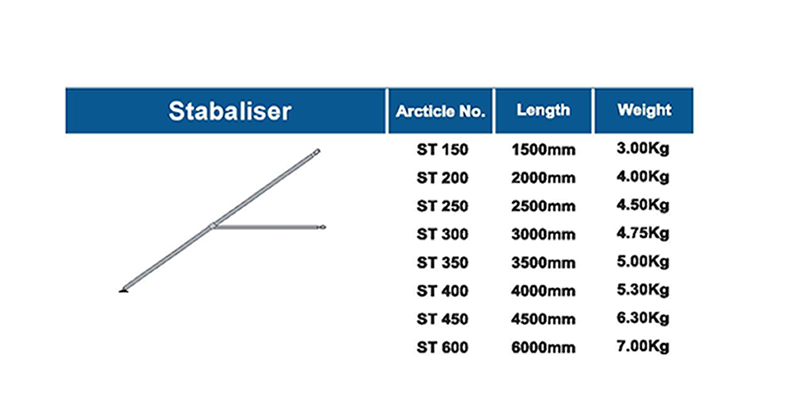

- Adjustable Stabaliser for various height with easy locking assembly clamps.
- Triangular Stabaliser be quickly assembled and adjusted in a telescopic manner.
- The rigid PVC Material of the stabalizer supple foot rest provides additional safety against the stabalizer sliding off.
- Four stabalizers are needed for free standing and gives the tower additional stability
- Stabalizers are available in standard,telescopic and jumbo.

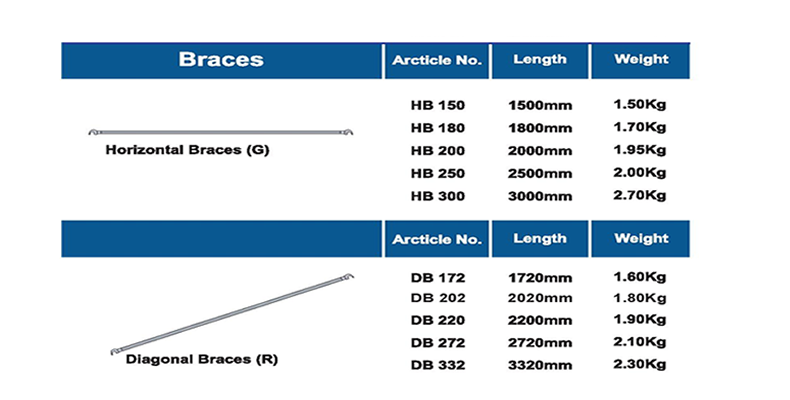

- Braces are colour coded for horizontal (green)and diagonal(red) to identify easly.
- Braces are welded not crimped inorder to provide secure connection and proper function.
- Heavy duty claws on braces with fast release clip – trigger mechanism

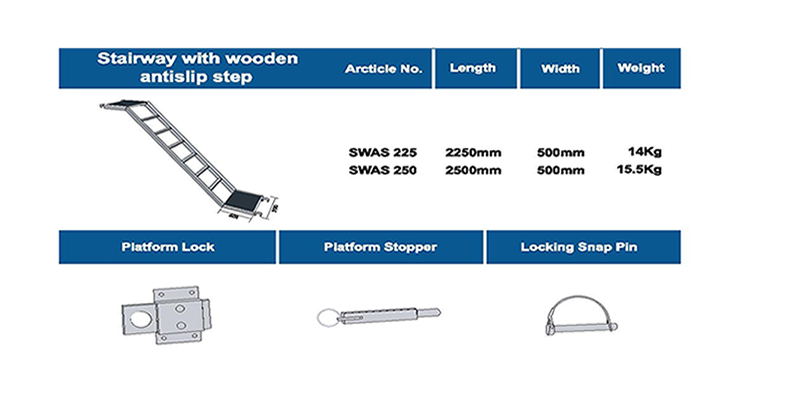

- Integral stairway and handral system is ideal for frequent and safe ascends and descends inside the tower
- Safe and simple to transport equipments on a stairway scaffold tower.
- Easy assembly.
- Equipped with antislip profile stairs.
- Equipped with standing platform on top side.
- Equipped with windlock security system
